99/D3 CO2 filling and recovery machine

Our areas of expertise

99/D3 CO2 filling and recovery machine

The filling machine is suitable for transferring and filling from liquid carbon dioxide gas cylinders. Flow rate = 150–360 kg/hour

Industrial reliability

Durable structural design and standard solutions for safe operation.

Customisable design

Tailored to individual technical requirements, gas types and operating conditions.

Description

Learn more about the product

The flow rate is 150 kg/h. The filling machine is suitable for transferring and filling from liquefied carbon dioxide gas cylinders.

In its standard configuration, the unit is suitable for filling fire extinguishers with a capacity of up to 4 kg, as well as indoor and outdoor carbon dioxide cylinders. With accessories, it is also possible to fill larger gas cylinders or even fill from a cryogenic tank. Our special model is also suitable for filling with nitrogen and carbon dioxide. The solution is a turnkey package containing all necessary units.

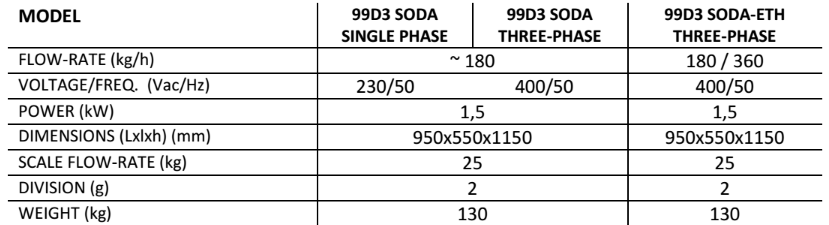

(99D3/MCBE008-1 PH): Phase 1. Flow rate: 150 kg/h. Voltage/frequency: 230 V/50 Hz.

(99D3/MCBE009-3 PH):3-phase. Flow rate: 150 kg/h. Voltage/frequency: 400/50 V/Hz.

(99D3/MCBE013-1 PH): 1-phase. Flow rate: 150 kg/h. Voltage/Frequency: 230 V/50 Hz.

(99D3/MCBE014-3 PH): 3-phase. Flow rate: 300 kg/h. Voltage/frequency: 400 V/50 Hz.

(99D3/MCBE017-1 PH): Phase 1. Flow rate: 60–360 kg/h. Voltage/frequency: 230/50 V/Hz.

(99D3/MCBE018-3 PH):3-phase. Flow rate 60–360 kg/h. Voltage/frequency 400/50 V/Hz.
