FIT 6-EVO automatic water pressure testing bench for 6 bottles

Fully automatic pressure test bench for cylinders with a 25E thread. Full cycle with a single connection: filling, pressurisation, venting, (drying). Maximum pressure: 450 bar. Gas cylinder diameter: 110–270 mm. Gas cylinder length: 500–1755 mm. Maximum capacity: 30 cylinders/hour

Industrial reliability

Durable structural design and standard solutions for safe operation.

Customisable design

Tailored to individual technical requirements, gas types and operating conditions.

Description

Learn more about the product

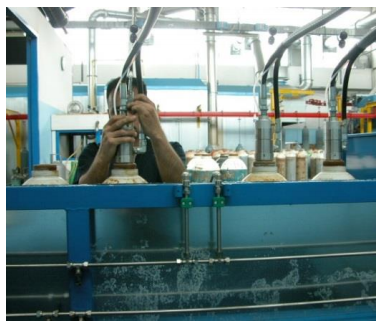

The Fit-6 is a fully automatic test bench for gas cylinders with a 25E thread. Filling, pressure testing and emptying are all carried out via a single connection.

  • Maximum pressure: 450 bar.
  • Gas cylinder diameter: 110–270 mm
  • Gas cylinder length: 500–1755 mm
  • Maximum capacity: 30 bottles per hour.

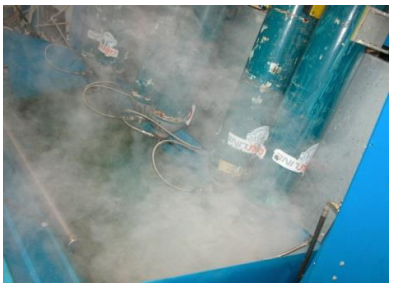

The FIT 6-EVO is an advanced automatic pressure testing system designed for testing gas cylinders and fire extinguishers. The new test bench is an upgraded version of the FIT50 test bench, which has been in production since the 1990s. Once installed at the customer’s premises, the machine handles the pressure testing process fully automatically: filling the gas cylinder, high-pressure testing, emptying the gas cylinder, and drying the gas cylinder using the optionally available superheated steam dryer. The machine’s main concept is high productivity achieved with a single operator, processing over 30 cylinders per hour, with the operator controlling the process via the control panel, excluding cylinder changes. The machine can be manufactured for 6 cylinders (single bench) and 6+6 cylinders (DUO version) for increased capacity. A high-pressure steam dryer can be integrated into the pressure bench, allowing pressure-tested cylinders to be dried directly on the bench (for steel cylinders only).
