CIL series, gas cylinder drying unit

4 or 6 position high performance fast bottle dryer with up to temperature control. For low humidity, we also offer air/nitrogen combination machines

SKU CIL series Category

Industrial reliability

Durable structural design and standard solutions for safe operation.

Customisable design

Tailored to individual technical requirements, gas types and operating conditions.

Description

Learn more about the product

4-8 position high speed bottle dryer with high capacity, with or without thermostat. For low humidity, we even offer an Air/Nitrogen combination machine. Timer switch is part of the basic machine, thermostatic control is available. High temperature air allows fast drying!



Attention!

[highlight background=”” color=””]The temperature setting can be important when using the dryer with both composite and aluminium cylinders. With composite cylinders, high heat can damage the internal structure of the cylinder, while with lightweight aluminium cylinders the cylinder temperature can potentially rise above the maximum temperature allowed. This poses a safety risk. Always choose a model with a thermostat if you are working with both composite gas cylinders and aluminium gas cylinders.[/highlight]

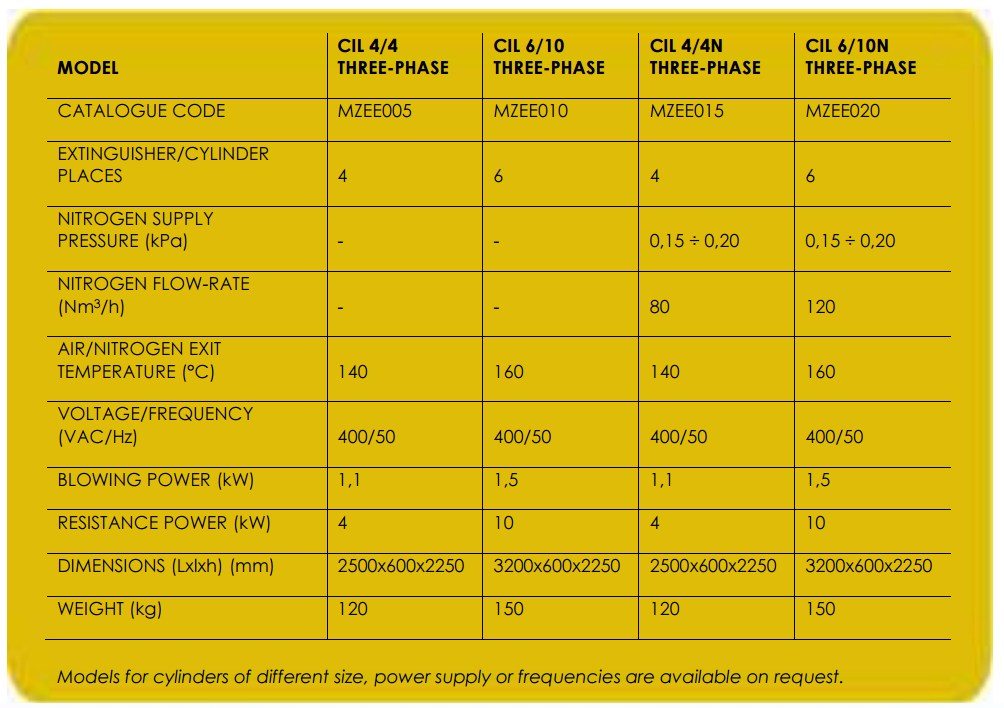

Gas cylinder dryer models available

  • CIL 4/4 - Gas cylinder dryer 4 positions 3 phase, 4 kW
  • CIL 4/4-PT100 - Gas cylinder dryer 4 positions 4 kW with thermostat
  • CIL6/10 - Gas cylinder dryer 6 positions 10 kW
  • CIL6/10-PT100 - Gas cylinder dryer 6 positions 10 kW with thermostat
  • CIL6/10-N-A - Gas cylinder dryer with 6-position 10 kW thermostat, automatic changeover between air feed and nitrogen feed
  • CIL8/10 - Gas cylinder dryer 8 positions 10 kW
  • CIL8/10-PT100 - Gas cylinder dryer 8 positions 10 kW with thermostat
  • CIL8/10-N-A - Gas cylinder dryer with 8-position 10 kW thermostat, automatic changeover between air feed and nitrogen feed
